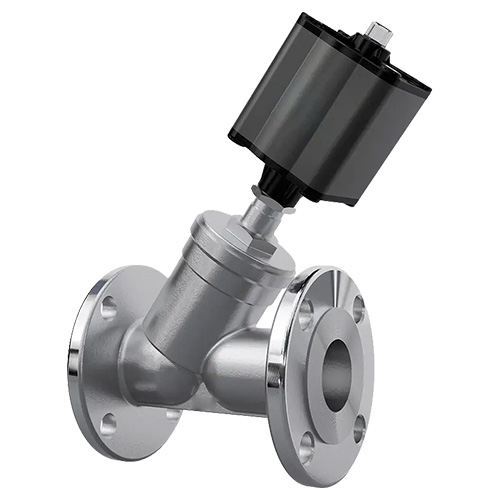

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE FLANGE END

Technical Data

SIZE : 15 MM TO 50 MM
BODY : CF8 /CF8M
BONNET : CF8 /CF8M
CAP : S.S
PLUG : CF8 /CF8M
SHAFT : CF8 /CF8M
SEAT : PTFE /GFT
END CONN.: FLANGED END
PRESSURE : PN16
TEMP. : 180°C /220°C

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE SCREWED END

Technical Data

SIZE: 15MM TO 50MM
BODY: CF8/CF8M
BONNET: CF8/CF8M
CAP: PLASTIC
PLUG: CF8/CF8M
SHAFT: CF8/CF8M
SEAT: PTFE/GFT
END CONN.: SCREWED END/TRICLOVER END
PRESSURE: PN16
TEMP.: 180°C / 220°C

CYLINDER OPERATED 2-WAY CONTROL VALVE FLANGED END

Technical Data

SIZE : 25 MM TO 100 MM
BODY : WCB /CF8 /CF8M
BONNET : WCB /CF8 /CF8M
SEAT : PTFE / GFT / METAL TO METAL
TEMP. : UPTO 450°C
END CONN. : FLANGED END
CLASS : 150#

DIAPHRAGM OPERATED 2-WAY CONTROL VALVE FLANGED END

Technical Data

SIZE: 25 MM TO 150 MM
MODEL: FCV
BODY: WCB /CF8 /CF8M
BONNET: WCB /CF8 /CF8M
SEAT: PTFE/GFT/METAL TO METAL
TEMP. : UPTO 450°C MAX
END CONN. : FLANGED END
CLASS : 150# /300#

DIAPHRAGM OPERATED 3-WAY CONTROL VALVE FLANGED END

Technical Data

SIZE : 25 MM TO 150 MM
BODY : WCB /CF8 /CF8M
BONNET : WCB /CF8 /CF8M
SEAT : PTFE/GFT/METAL TO METAL
TEMP. : UPTO 450°C MAX
END CONN. : FLANGED END
CLASS : 150# /300#

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE FLANGE END

Technical Data

SIZE : 15MM TO 50MM
BODY : CF8/CF8M
BONNET : CF8/CF8M
CAP : PLASTIC
PLUG : CF8/CF8M
SHAFT : CF8/CF8M
SEAT : PTFE/GFT
END CONN. : FLANGE END
PRESSURE : PN16
TEMP. : 180°C / 220°C

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE FLANGE END

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE FLANGED END

Technical Data

SIZE: 15 MM TO 50 MM
BODY: CF8 /CF8M
BONNET: CF8 /CF8M
PLUG: CF8 /CF8M
SHAFT: CF8 /CF8M
SEAT: PTFE /GFT
END CONN.: FLANGED END
PRESSURE: PN16
TEMP.: 180°C /220°C

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE SCREWED END

Technical Data

SIZE : 15MM TO 50MM
MODEL : BCV
BODY : CF8/CF8M
BONNET : CF8/CF8M
CAP : PLASTIC
PLUG : CF8/CF8M
SHAFT : CF8/CF8M
SEAT : PTFE/GFT
END CONN. : SCREWED END/TRICLOVER END
PRESSURE : PN16
TEMP. : 180°C / 220°C

CYLINDER OPERATED 3-WAY CONTROL VALVE FLANGED END

Technical Data

SIZE : 25 MM TO 100 MM
BODY : WCB /CF8 /CF8M
BONNET : WCB /CF8 /CF8M
SEAT : PTFE / GFT / METAL TO METAL
TEMP. : UPTO 450°C
END CONN. : FLANGED END
CLASS : 150#

2 WAY PNEUMATIC OPERATED ANGLE TYPE ON-OFF CONTROL VALVE SCREWED END

Technical Data

SIZE: 15 MM TO 50 MM
BODY: CF8 /CF8M
BONNET: CF8 /CF8M
PLUG: CF8 /CF8M
SHAFT: CF8 /CF8M
SEAT: PTFE /GFT
END CONN.: SCREWED END/TRICLOVER END
PRESSURE: PN16
TEMP.: 180°C /220°C

2-2 WAY SINGLE ACTING CYLINDER CONTROL VALVE FLANGED END

Technical Data

SIZE : 25 MM TO 50 MM
BODY : CAST IRON
BONNET : CAST IRON
SEAT : PTFE
TEMP. : UP TO 180°C
END CONN. : FLANGED END
CLASS : 125#
