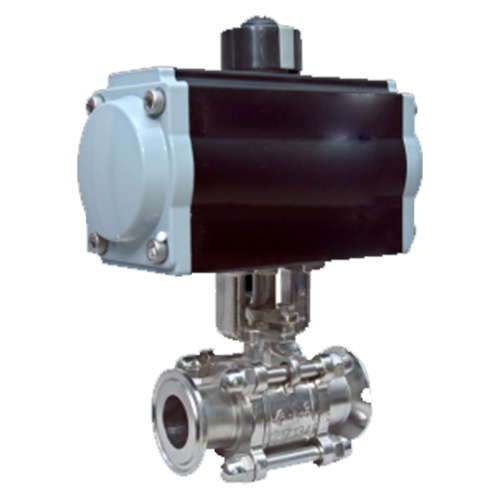

SIZE : 15 MM TO 50 MM
BODY : CF8 /CF8M
BALL : CF8 /CF8M
SEAT : PTFE /GFT
PRESSURE : UPTO 10 BAR
TEMP. : UPTO 180°C /220°C
END CONN. : TRICLOVER END
RATING : 150#

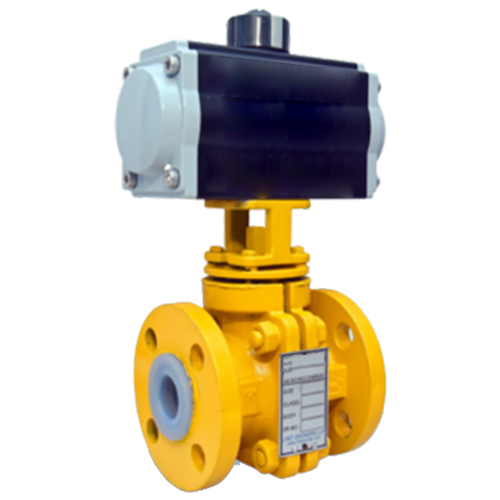

SIZE : 25 MM TO 100 MM
BODY : WCB / CF8 / CF8M
BODY MOULDING : FEP/PFA
BALL : S.S
BALL MOULDING : FEP / PFA
BALL SEAT : PTFT / GFT / CFT
ACTUATOR MOUNTING BRACKET : S.S
TEMP. : MAX UPTO: PFA-180°C| FEP-230°C
END CONN. : FLANGED END
RATING : 150#

SIZE : ON REQUEST
BODY : CF8 / CF8M
BALL : CF8 / CF8M
SEAT : PTFE / GFT / CFT / PEEK
PRESSURE : UPTO 10 BAR
TEMP. : UPTO 180°C / 220°C
END. CONNECTION : FLANGED END
OPERATION : PNEUMATIC / ELECTRICAL
RATING : 150#

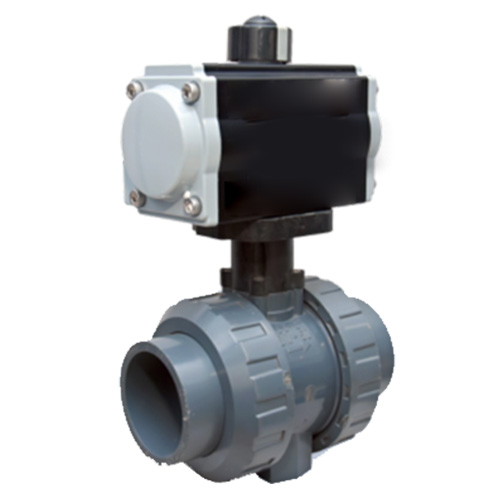

SIZE : 15 MM TO 50 MM
BODY : UPVC
BALL : UPVC
SEAT : EPDM / VITON /SILICON
PRESSURE : UPTO 10 BAR
TEMP. : 100°C MAXIMUM
END. CONNECTION : SOCKET WELD END
OPERATION : PNEUMATIC / ELECTRICAL
RATING : 150#

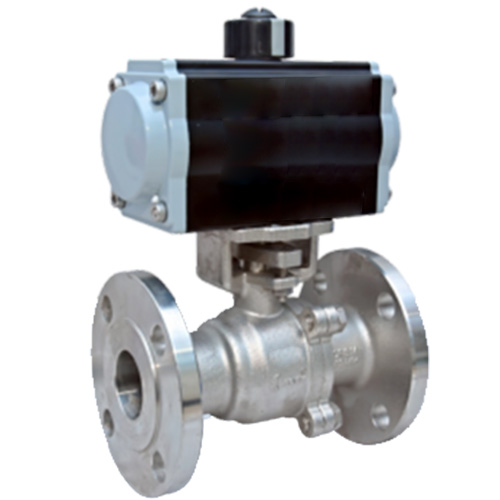

SIZE : 15 MM TO 200 MM
MODEL : LE-BV-Q20
BODY : WCB /CF8 /CF8M
BALL : CF8 /CF8M
SEAT : PTFE /GFT /CFT / PEEK
PRESSURE : UPTO 10 BAR
TEMP. : UPTO 180°C /220°C
END CONN. : FLANGED END
RATING : 150# /300#

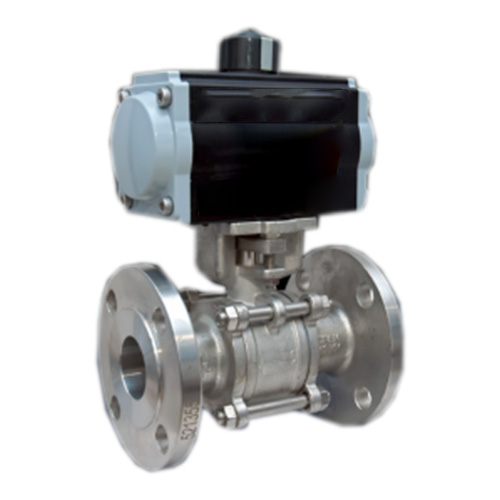

SIZE : 15 MM TO 200 MM
MODEL : LE-BV-Q10
BODY : WCB /CF8 /CF8M
BALL : CF8 /CF8M
SEAT : PTFE /GFT /CFT / PEEK
PRESSURE : UPTO 10 BAR
TEMP. : UPTO 180°C /220°C
END CONN. : FLANGED END
RATING : 150# /300#

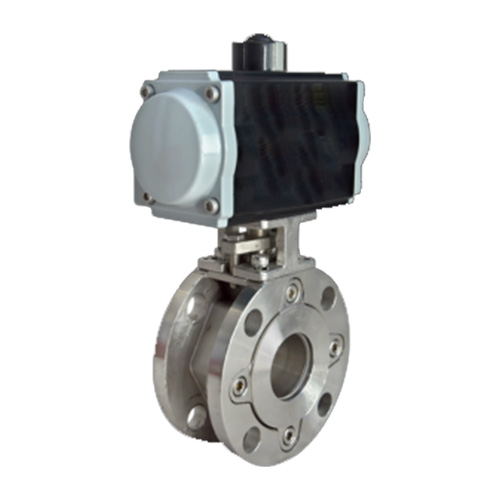

SIZE : 25 MM TO 100 MM
BODY : CF8 /CF8M
BALL : CF8 /CF8M
SEAT : PTFE /GFT /CFT / PEEK
PRESSURE : UPTO 10 BAR
TEMP. : UPTO 180°C /220°C
END CONN. : WAFER END
RATING : 150#
